Create a self checkout with computer vision

What You'll Build

A computer vision-powered self checkout. You'll create and train a custom model based on your favorite drinks and combine it with a vision service. This machine can then be deployed to a Raspberry Pi or spare laptop to be used as a checkout!

computer vision powered checkout; gif showing a beverage being shown to the camera with a bounding box around it and a confidence level for its detection

Prerequisites

A computer with a built-in webcam
(optional) A USB webcam that you can connect to the computer you'll be using
A few of your favorite drinks! At least 3 different drinks are recommended to train your custom model

What You'll Need

What You'll Learn

How to configure a camera in the Viam platform
How to capture images and create your own training dataset
How to build and train a custom model using TFLite
How to implement your custom model in your machine

In the Viam app under the LOCATIONS tab, create a machine by typing in a name and clicking Add machine.
Click View setup instructions.
To install viam-server on your device, select the operating system you are running. For example, I'll be using a MacBook Air as my device, so I'll select Mac:
Follow the instructions that are shown for your platform.
The setup page will indicate when the machine is successfully connected.

With a machine configured, we now need a way to capture images. Let's add a webcam next!

In the Viam app, find the CONFIGURE tab.
Click the + icon in the left-hand menu and select Component.
Select camera, and find the webcam module. Leave the default name camera-1 for now, then click Create. This adds the module for working with a standard USB camera or other webcam that streams camera data.
Notice adding this module adds the camera hardware component called camera-1. You'll see a collapsible card on the right, where you can configure the camera component, and the corresponding camera-1 part listed in the left sidebar.

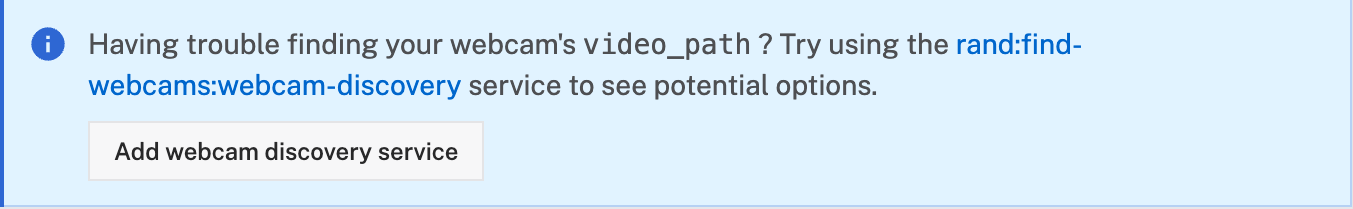

To configure the camera component, the video_path of the intended device needs to be set. You can quickly find which devices are connected to your machine by adding a discovery service. Click Add webcam discovery service that appears in the prompt.
Notice that this adds the discovery-1 service and find-webcams module to your machine in the left sidebar. Corresponding cards to these items also appear on the right.
Click Save in the top right to save and apply your configuration changes.
Expand the TEST panel of the discovery-1 card. Here, you'll find attributes of all discoverable cameras connected to your machine. Find the video_path of the device you'd like to use as your webcam, then copy the value. For example, I'll use my MacBook Air's built-in FaceTime camera, so I'll copy 3642F2CD-E322-42E7-9360-19815B003AA6
Paste the copied video_path value into your camera component's video_path input, which is in the Attributes section:
Click Save in the top right once more to save and apply your configuration changes.
Expand your camera component's TEST panel. If things are properly configured, you should see the video streaming from your camera.
With your camera added and working, you can now delete the discovery-1 service and find-webcams module as you'll no longer need them. Click the ... next to each item, then select Delete.
You will be prompted to confirm the deletion, select Delete
Finally, Save your configuration changes.

Great, your machine now has eyes!

To train a custom model based on your beverages, you'll need a dataset the LiteRT framework (previously known as TensorFlow Lite) can use. Here, you'll create a dataset and add some images of your beverages using the webcam you configured in the last step. (Note that the rest of this codelab will still refer to TensorFlow Lite in some areas)

In the Viam app, find the DATASETS tab.

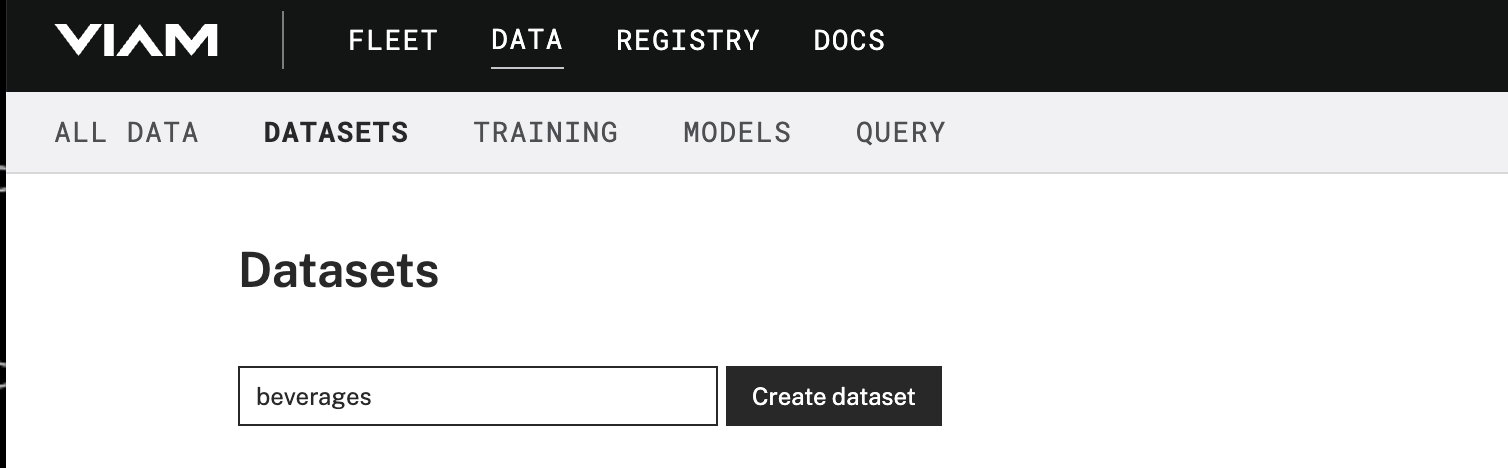

Click the + Create dataset button and give your dataset a name, like beverages. Click the Create dataset button again to save.
Switch back to your machine in the Viam app. You can navigate back by going to Fleet > All Machines Dashboard, then clicking on the name of your machine.
Expand your camera component's TEST panel. Here, you'll see the live feed of your camera as well the "Add image to dataset" icon, which looks like a camera.
Using the live feed as a viewfinder, position your webcam so that you can place one of your beverages fully in the frame. The less visual clutter in the background the better!
Good test data: If you're able to set up a little "photo shoot" booth to capture images of your beverages, do so! My own setup consisted of a piece of cardboard propped up by a bookend, my laptop pushed close enough to let the cardboard fill the frame, and enough space to place my drink. Great images are clear, well-lit, minimize visual noise or clutter, and clearly isolate the object you are trying to capture. If possible, capturing different angles and different lighting scenarios are great additions to your dataset as well. Remember, for each object you are trying to detect, at least 10 images are needed to train a model!
When you are happy with the image, click the Add image to dataset button.
In the list of datasets that appear, select the dataset you wish to add your captured image to. For example, beverages:
Confirm the dataset you've selected, then click Add.
A success message will appear at the top-right once your image is added to your selected dataset.
Repeat steps 5 - 8 to capture at least 10 images of each beverage you will be detecting. Be sure to vary angles and positions!

san pellegrino peach another angle san pellegrino peach one more angle san pellegrino peach blueberry topo chico different angle blueberry topo chico one more angle blueberry topo chico spindrift different angle spindrift one more angle spindrift

Phew, that was a lot, but your custom model will thank you! Let's make our images smarter by annotating them in the next step.

Having images to train a model is a good start. However, they won't be useful unless TensorFlow has a bit more information to work with. In this step, you'll draw bounding boxes around your beverages and label them accordingly.

In the Viam app, find the DATASETS tab.
Click on the name of your dataset, for example beverages:
Here, you'll see all of the images you've captured, neatly grouped into its own space.
Select one image from the dataset. A side panel will appear on the right-hand side. You can see details about this image, such as any objects annotated, associated tags, which datasets the image belongs to, among other details. Click on the Annotate button in this panel.
The selected image opens to a larger screen. To detect an object within an image, a label must be given. Create an appropriate label for the beverage you have selected, for example spindrift_pog:
With the appropriate label now chosen, hold the Command or Windows key down while you use your mouse to draw a bounding box around your beverage.
In the OBJECTS panel on the right, you'll see your beverage listed, with an object count of 1. If you hover over this item, you'll see the spindrift_pog label appear in the image and the bounding box fill with color.
Repeat this for the rest of the images that match the label. You can quickly navigate between images by pressing the > (right arrow) or < (left arrow) keys on your keyboard.
Once you get to a new beverage, create another descriptive label, draw the bounding box, and repeat for the rest of the images of the same beverage. Double check that each image only has one label and detects the correct beverage! (Multiple labels and therefore, bounding boxes, are allowed and make sense for more complex detections. Since we are just trying to accurately detect the correct beverage one at a time, one label per image is recommended for this codelab)
When you are finished annotating all of your images, you can exit out of the annotation editor by clicking on the "X" in the top-left corner. Notice that a breakdown of your bounding box labels are calculated and displayed:
Be sure that all your images are labeled, that there are no Unlabeled images left, and that there are at least 10 images of each beverage you are planning to detect.

Great work annotating all of that. (so..many..beverages...) Your model will be the better for it. Let's finally train your custom model!

In your dataset overview, click Train model located within the left-hand panel.
Select your model training options. For now, leave the default selections of New model and Built-in (TensorFlow Lite). Confirm that the correct dataset is selected. Click Next steps.
Give your model a name, for example beverage-detector
Select Object detection as the Task type. Notice that the labels you've created are auto-detected from the images in your dataset and selected in the Labels* section:
Click Train model. This will kick off the training job for your custom model.
If you click on the ID of your training job, you can view more details on the job's overview. You can view any relevant logs while the job runs.
Wait until your training job is complete. It may take up to 15 minutes, so feel free to open up one of your beverages! Once it is finished, you'll see the status of your job change to Completed

Well done, you've just created your own custom model tailored to your favorite drinks! Let's add it to our machine.

In the Viam app, find the CONFIGURE tab.
Click the + icon in the left-hand menu and select Service.
Select ML model, and find the TFLite CPU module. Click Add module. Leave the default name mlmodel-1 for now, then click Create. This adds support for running TensorFlow Lite models on resource-constrained devices.
Notice adding this module adds the ML Model service called mlmodel-1 and the tflite_cpu module from the Viam registry. You'll see configurable cards on the right and the corresponding parts listed in the left sidebar.
In the Configure panel of the mlmodel-1 service, leave the default deployment selection of Deploy model on machine. In the Model section, click Select model.

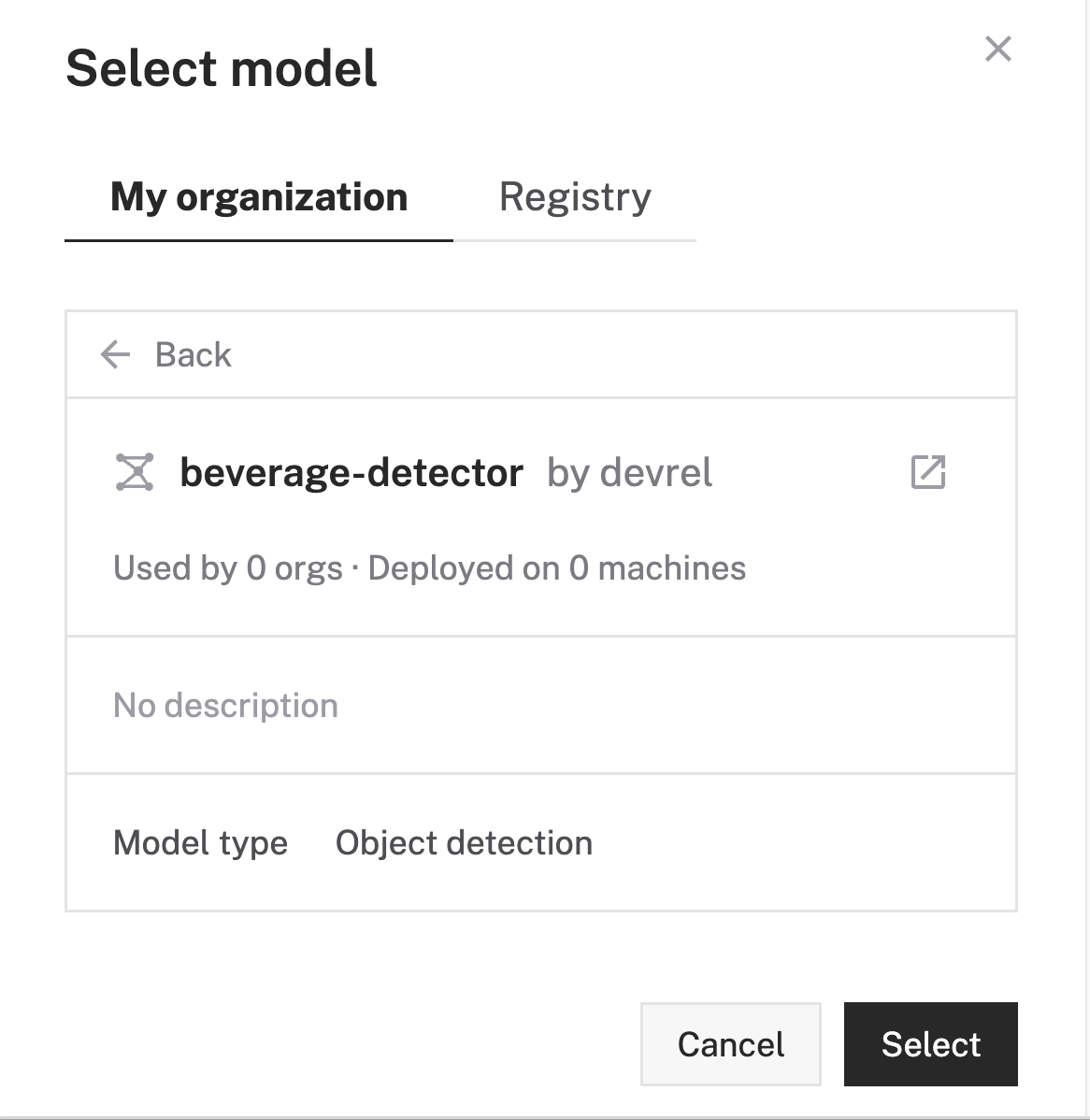

Find and select the custom model you've just trained, for example beverage-detector. Notice that you can select from any custom models you create (located within the My Organization tab) or from the Viam registry (located within the Registry tab). Click Select
Confirm that the correct dataset is selected, then click Select
Click Save in the top right to save and apply your configuration changes.
Your custom model is now configured and will be used by the ML model service. Notice that a Version option is also configurable. If you decide to train new versions of your beverages model, you have the ability to set specific versions based on your needs.

In the Viam app, find the CONFIGURE tab.
Click the + icon in the left-hand menu and select Service.
Select vision, and find the ML Model module. Give your vision service a more descriptive name, for example beverage-vision-service. Click Create. While the camera component lets you access what your machine sees, the vision service interprets the image data.
Notice that your service is now listed in the left sidebar and a corresponding configuration card is added on the right.
In the Configure panel of your vision service, set the ML Model to your ML Model service, for example mlmodel-1
Move the Minimum confidence threshold slider to 0.5. This sets the vision service to only show results where its beverage detection confidence level is at least 50% or higher.
Find and select your camera component in the Depends on section, for example camera-1.
Click Save in the top right to save and apply your configuration changes. This might take a few moments.
Expand the TEST panel of your vision service. You'll see a live feed of your configured webcam and a section Labels. Test out your CV-powered checkout! Try showing your beverages to your webcam. When detected, an item will appear with the object the vision service thinks it is seeing and its confidence level. You can also try showing multiple beverages and see how well your model detects them!
Troubleshooting: Having trouble detecting the correct beverage (or anything at all)? Try setting the Minimum confidence threshold to something smaller, save your changes, and see if that helps. Additionally, make sure you have enough light for your webcam to detect clearer images, keep your background and surroundings free of potential visual clutter, and hold up your beverage for at least a few seconds (so that the vision service can get a clear image to interpret). If this all still doesn't work, you may need to add more images or better quality images to your model. Luckily, you can repeat the steps in Create a dataset and capture some training data, train a new version of your model, then try using it in your ML model service. The more data the better, so at the very least, more images of your beverages should make your model a bit better.

Congratulations! You've just built a working computer vision-powered checkout with a custom model trained on your favorite beverages!

Congratulations! You've just built a computer vision-powered checkout! 🥳 Using your own images, favorite drinks, and the built-in TensorFlow Lite framework, you've created a custom model to detect the beverages that make you smile and can be deployed anywhere. And through Viam's modular platform, you combined your custom model with a vision service to enable a CV-powered checkout! Do let me know if you've built this!

What You Learned

How to configure a camera in the Viam platform
How to capture images and create your own training dataset
How to build and train a custom model using TFLite
How to implement your custom model in your machine

Real-world applications for CV-powered checkout

This project is a great way to learn about combining different components to produce something useful; it has practical applications as well:

Handling items without barcodes or damaged barcodes
Quickly identifying and pricing items that have several varieties (say detecting a Granny Smith Apple from a Honeycrisp apple more quickly than trying to find the PLU (Price Look-Up code))
Scanning oddly-shaped items, where orienting a barcode is difficult or awkward
Real-time inventory and stock monitoring, with items detected at checkout updating stock levels to the second
Specialized retail environments where setting up full point-of-sale systems is prohibitive or cumbersome.

Specifically for beverages, some real-world use cases can include:

Automated vending machines with image confirmation of the correct drink being dispensed, resulting in fewer errors or customer disputes
Drive-thru visual confirmation, where prepared orders can be visually inspected and confirmed for the correct drinks
Retrofitting your refrigerator to manage home drink inventory or to automate billing of drinks in shared living spaces

Extend your CV-checkout with Viam

Right now, you can detect your favorite drinks using your custom model. But there are other things you can do! As an example, you could:

Integrate with an existing Point of Sale system to enable CV-powered self-checkout.
Incorporate automatic pricing and calculations based on detected items.
Add a piezo buzzer to play a tone when a drink is detected.
Send a text notification when your drink has been removed from the fridge!
